FRONIS WELDING MACHINE INDIA PVT LTD
Affordable welder for professional application with excellent performance, enjoy a reputation of reliability and portability and good for tough working condition, targeting on heavy fabrication, plant construction, pressure vessels, shipbuilding, process industry, etc.
Powerful, robust and portable design with professional performance, targeting on household welding and light fabrication project.
FEATURES
- Latest mature MCU control technology,stable and high quality.
- Dual voltage design design, electrical safety and wide application site.
- Full bridge IGBT inverter design,offering more efficiency, better control.
- Friendly interact panel, easy to understand and operate.
- Instantaneous ARC start,high penetration and ARC stability.
- DC current output, good fit for Acid electrode and Alkaline electrode.
- Tolerant to currrent fluctuation or arc length.
- Protected and compatible with generator.
- HOT start, ensure 100% successful arc start.
- Anti-sticking ensure troublefree of electrode sticking
- ARC force ensure its stable welding performance against different application field.
- VRD functions ensure consumer free from electricity shock.
SPECIFICATIONS

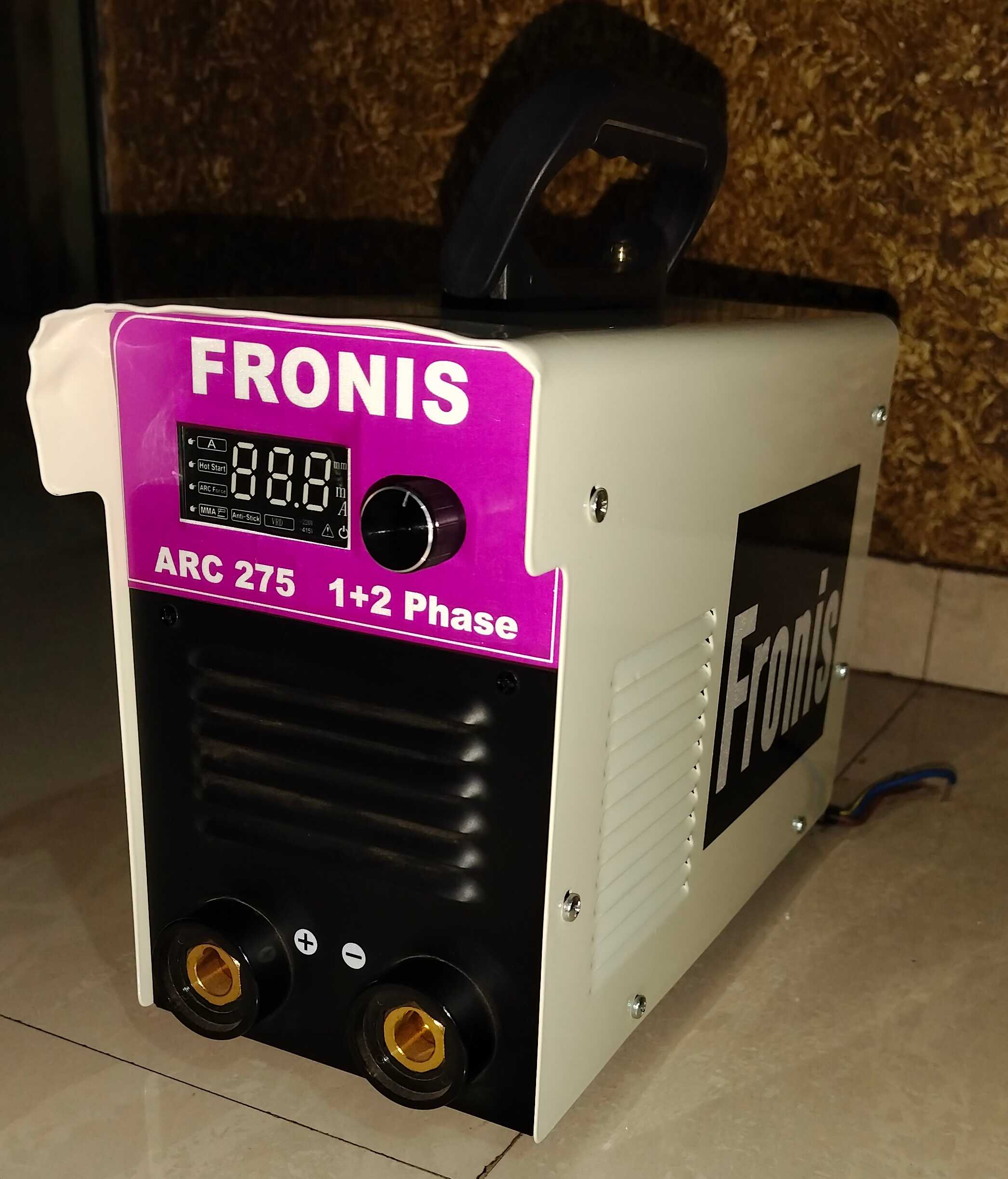

| MODEL NAME | ARC-275 |
| INPUT VOLTAGE | 1P220V&2P415V |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | |
| OUTPUT CURRENT | 30-275A |
| ARC FORCE RANGE | 1-100 |
| HOT START RANGE | 1-10 |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| INSULATION GRADE | F |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 355*130*220mm |
| WEIGHT APPROX. | 5.8kg |
FEATURES
- Professional ARC welder in INDUSTRIAL level design,good fit for E6010, E6011, E6013, E7014, E7018, etc.
- Premium ARC characteristic in advanced IGBT inverter technology,ensure durability and reliability.
- Full bridge IGBT inverter design,offering more efficiency, better control.
- Friendly interact panel, easy to understand and operate.
- Instantaneous ARC start,high penetration and ARC stability.
- DC current output, good fit for Acid electrode and Alkaline electrode.
- Tolerant to currrent fluctuation or arc length.
- Protected and compatible with generator.
- Adjustable hot start, ensure 100% successful arc start.
- ARC force ensure its stable welding performance against different application field.
- VRD functions ensure consumer free from electricity shock.
SPECIFICATIONS

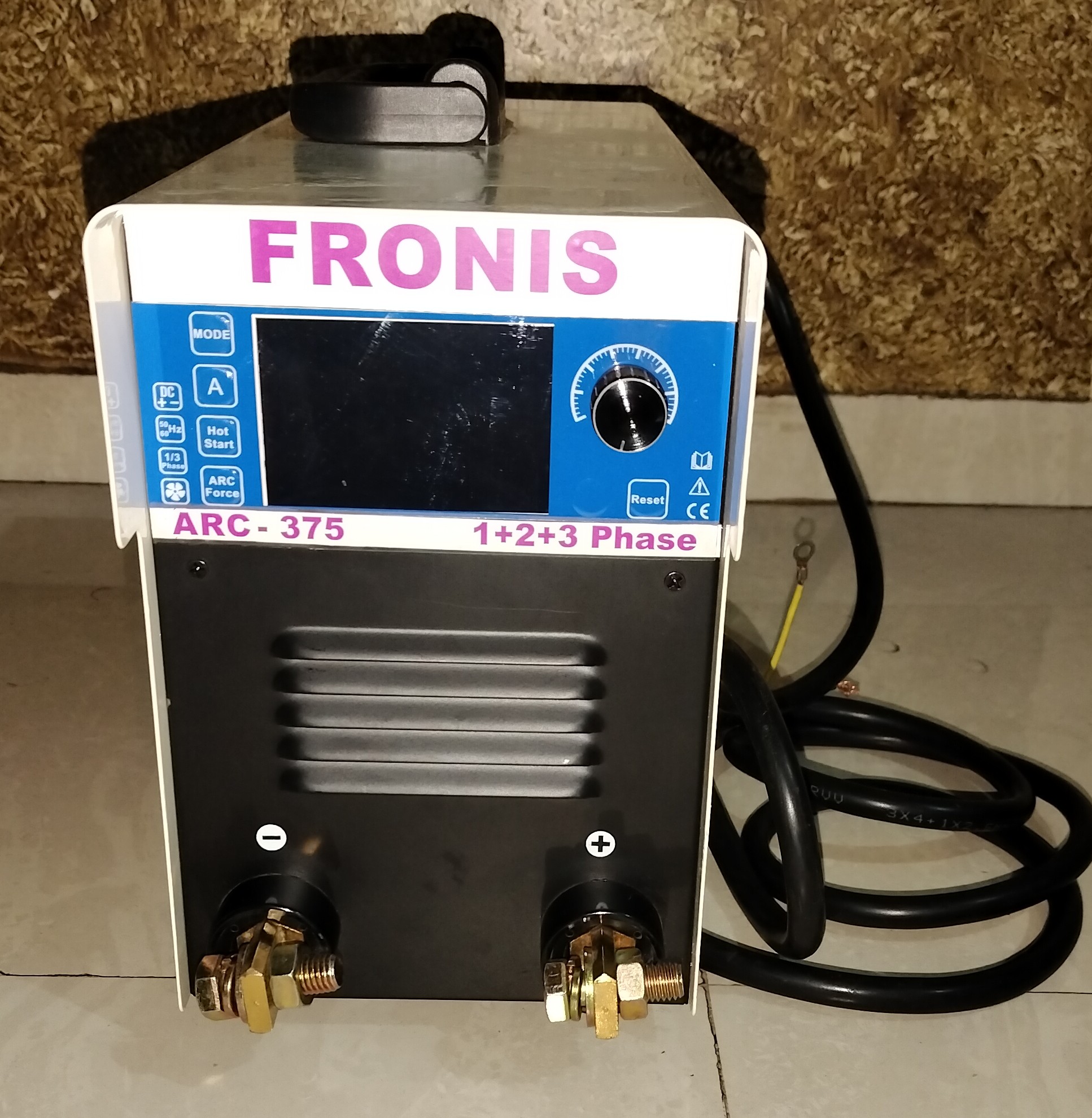

| MODEL NAME | ARC-375 |

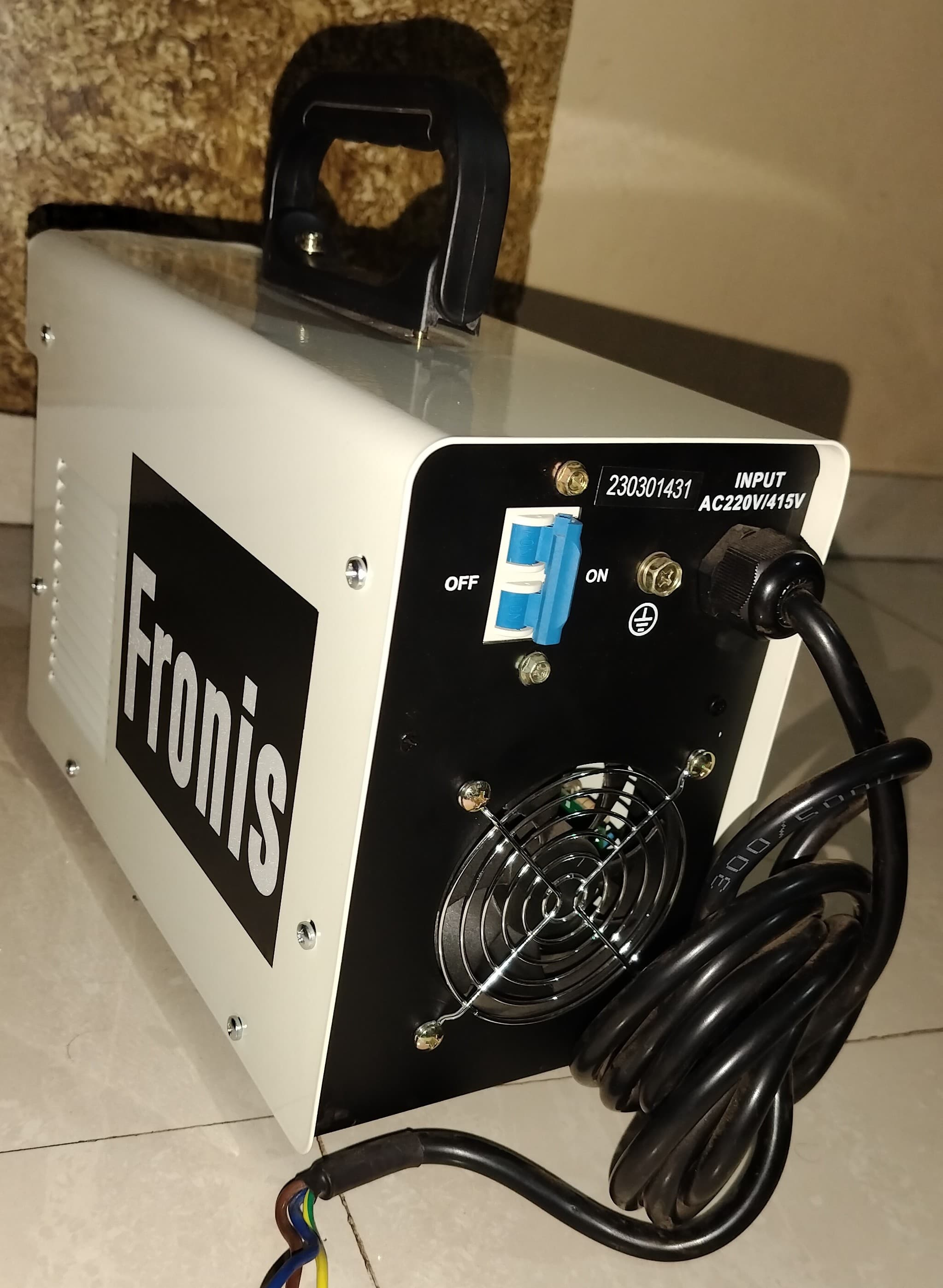

| INPUT VOLTAGE | 1P220V/2P 380V/3p415±15% |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | |
| OUTPUT CURRENT | 30-375A |
| ARC FORCE RANGE | 1-100 |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| INSULATION GRADE | F |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 395*167*290mm |
| WEIGHT APPROX. | 8.5kg |
FEATURES
- Latest mature MCU control technology,excellent starting peroformance( stable and dynamic).
- Full bridge IGBT inverter design,offering more efficiency, better control.
- Friendly interface, easy to understand and operate.
- Synergic application mode enable you achieve the job in comfortable way, also trouble-free from paramter matching issue.
- Manual application mode can let you enjoy more happy from welding, more specific for welding job, especially for professional welder.
- Dual voltage design further enlarge its application site, good fit for long-time operation of 1.0mm gas wire and 1.0mm gasless wire.
- Perfect fit for General fabrication, Construction site, Light industry, Maintenance and repair.
SPECIFICATIONS
| MODEL NAME | MIG 335 |
| INPUT VOLTAGE | 1P220V&2P415V±15% |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | |
| OUTPUT CURRENT | 30-335A |
| WIRE FEEDING SPEED (m/min) | 3-18 |
| FEEDING WIRE SIZE | 0.8/1.0mm |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| RECOMMENDED WORKPIECE THICKNESS | ≥0.8mm |
| INSULATION GRADE | F |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 546*234*417mm |
| WEIGHT APPROX. | 11kg |
FEATURES
- Intelligent startup - Minimal power grid impact, Intelligent soft start, Intelligent fan control.
- Thrust Control - Effectively enhances arc Penetration, Deeper fusion.
- High Overload Capacity - Full Load Welding at 40 degree Celsius, impact work efficiency.
- Hot Start Efficiency Improves arc Ignition success Rate
- Anti-Stick Control - Next Generation Anti-Stick Technology, resolves arc Ignition sticking issues.
- Arc Ignition Tensioning - Quick arc Ignition, Reduced tungsten electrode wear, More stable welding arc.
- Wide Rande of Electrode Applicability - Suitable for Stainless steel, Carbon Steel, Alkaline Electrodes and more.
SPECIFICATIONS

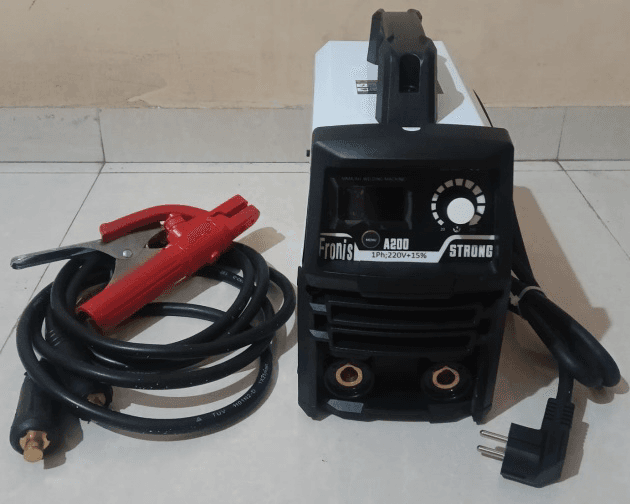

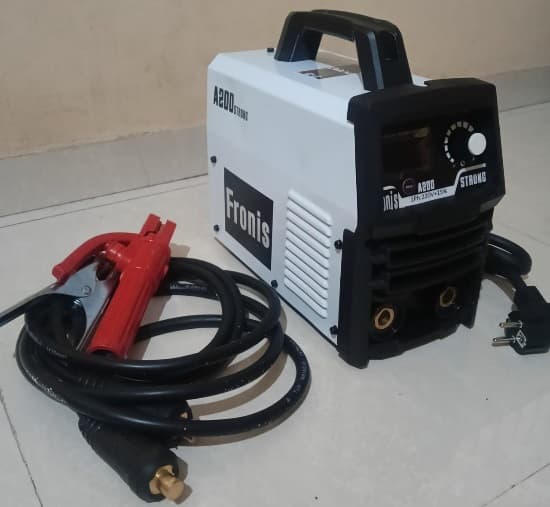

| MODEL NAME | MMA A200 |
| INPUT VOLTAGE | 1P 220V |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | 37A |
| OUTPUT CURRENT | 0-200A |
| ROD DIAMETER (MM) | 1.6-5.0 |
| PROTECTION CLASS | F |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| PROTECTION CLASS | IP21S |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 300*150*260mm |
| WEIGHT APPROX. | 4.5kg |
FEATURES
- Intelligent startup - Minimal power grid impact, Intelligent soft start, Intelligent fan control.
- Thrust Control - Effectively enhances arc Penetration, Deeper fusion.
- High Overload Capacity - Full Load Welding at 40 degree Celsius, impact work efficiency.
- Hot Start - Efficiency Improves arc Ignition success Rate
- 32-Bit Micro Controller - Program calculation , Higher overall stability.
- Anti-Stick Control - Next Generation Anti-Stick Technology, resolves arc Ignition sticking issues.
- Pulse Manual Welding - Reduce Welding splutter, High weld seam quality.
- Arc Ignition Tensioning - Quick arc Ignition, Reduced tungsten electrode wear, More stable welding arc.
- Wide Rande of Electrode Applicability - Suitable for Stainless steel, Carbon Steel, Alkaline Electrodes and more.
- Generator Campatibility - Operate At Voltages From 160v to 560v, equipped with high and low voltage Protection.
SPECIFICATIONS

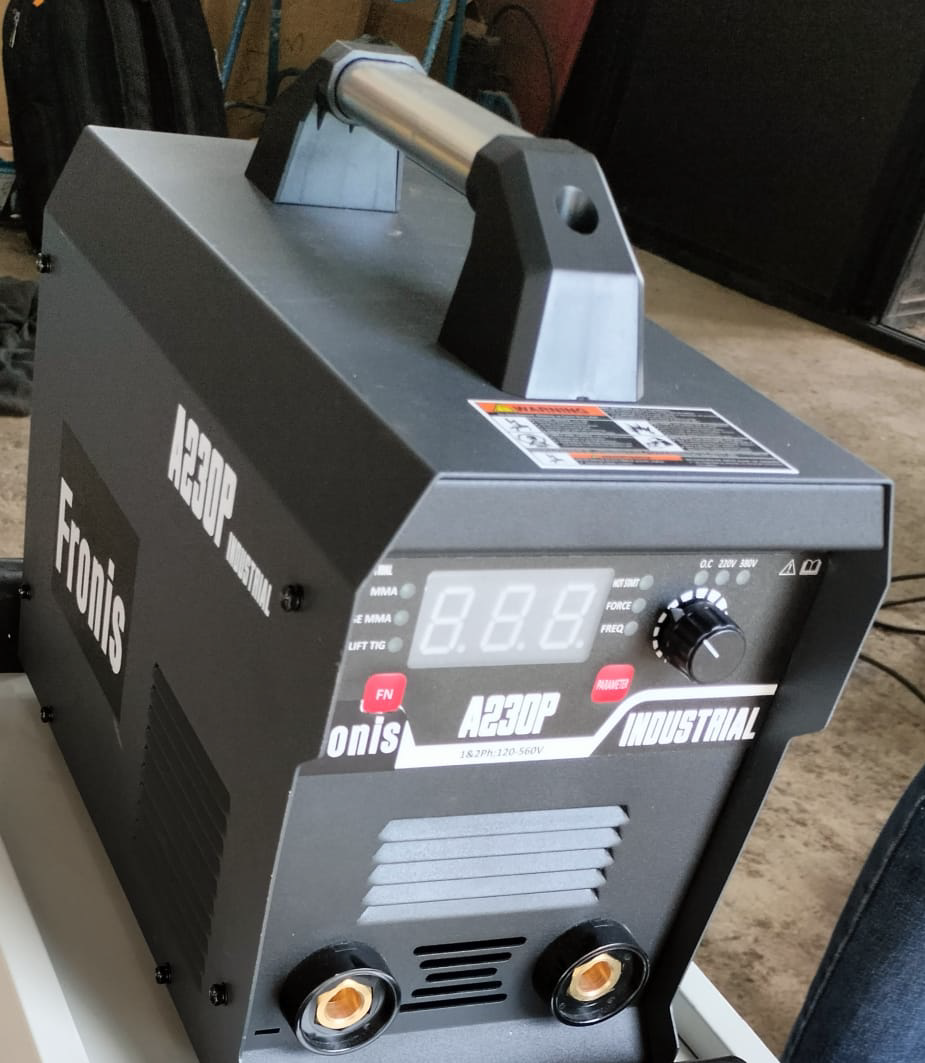

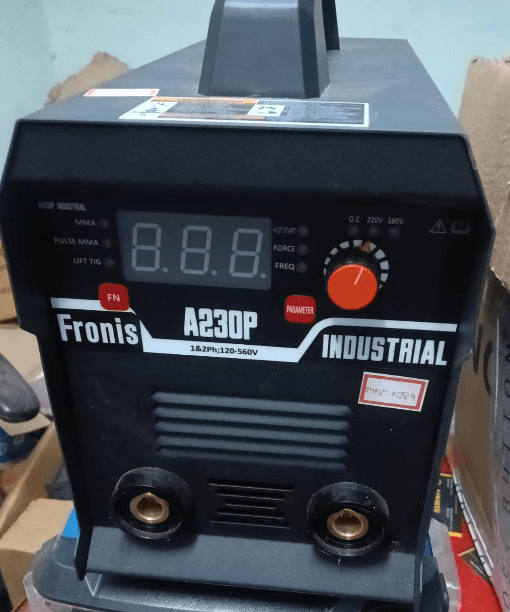

| MODEL NAME | MMA A230 |
| INPUT VOLTAGE | 1P220V&2P415V±15% |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | 44A |
| OUTPUT CURRENT | 0-230A |
| ROD DIAMETER (MM) | 1.6-5.0 |
| PROTECTION CLASS | F |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| PROTECTION CLASS | IP21S |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 475*220*345mm |
| WEIGHT APPROX. | 7.7kg |
FEATURES
- Latest mature MCU control technology,excellent starting peroformance( stable and dynamic).
- Full bridge IGBT inverter design,offering more efficiency, better control.
- Friendly interface, easy to understand and operate.
- Synergic application mode enable you achieve the job in comfortable way, also trouble-free from paramter matching issue.
- Manual application mode can let you enjoy more happy from welding, more specific for welding job, especially for professional welder.
- Dual voltage design further enlarge its application site, good fit for long-time operation of 1.0mm gas wire and 1.0mm gasless wire.
- Perfect fit for General fabrication, Construction site, Light industry, Maintenance and repair.
SPECIFICATIONS

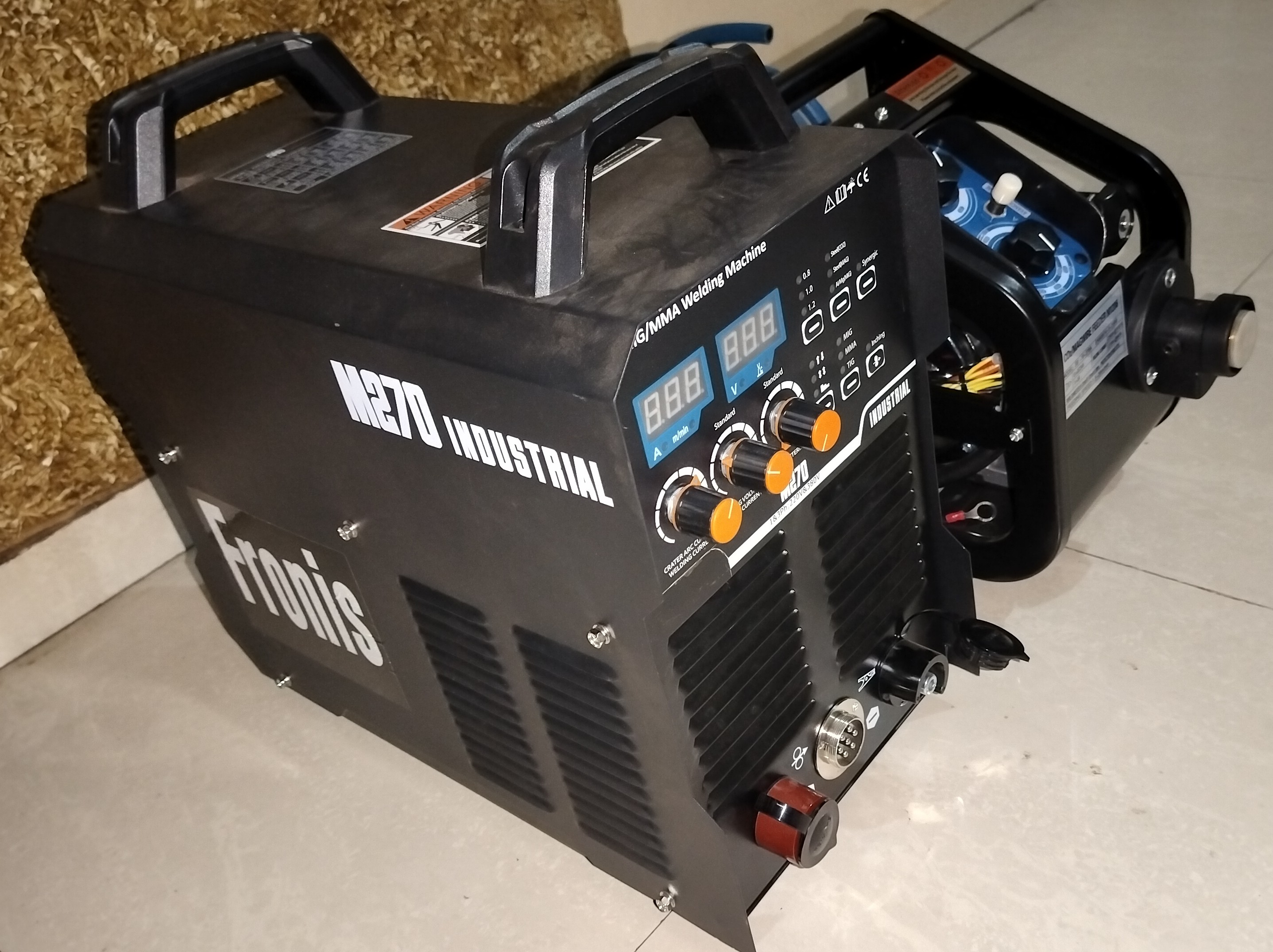

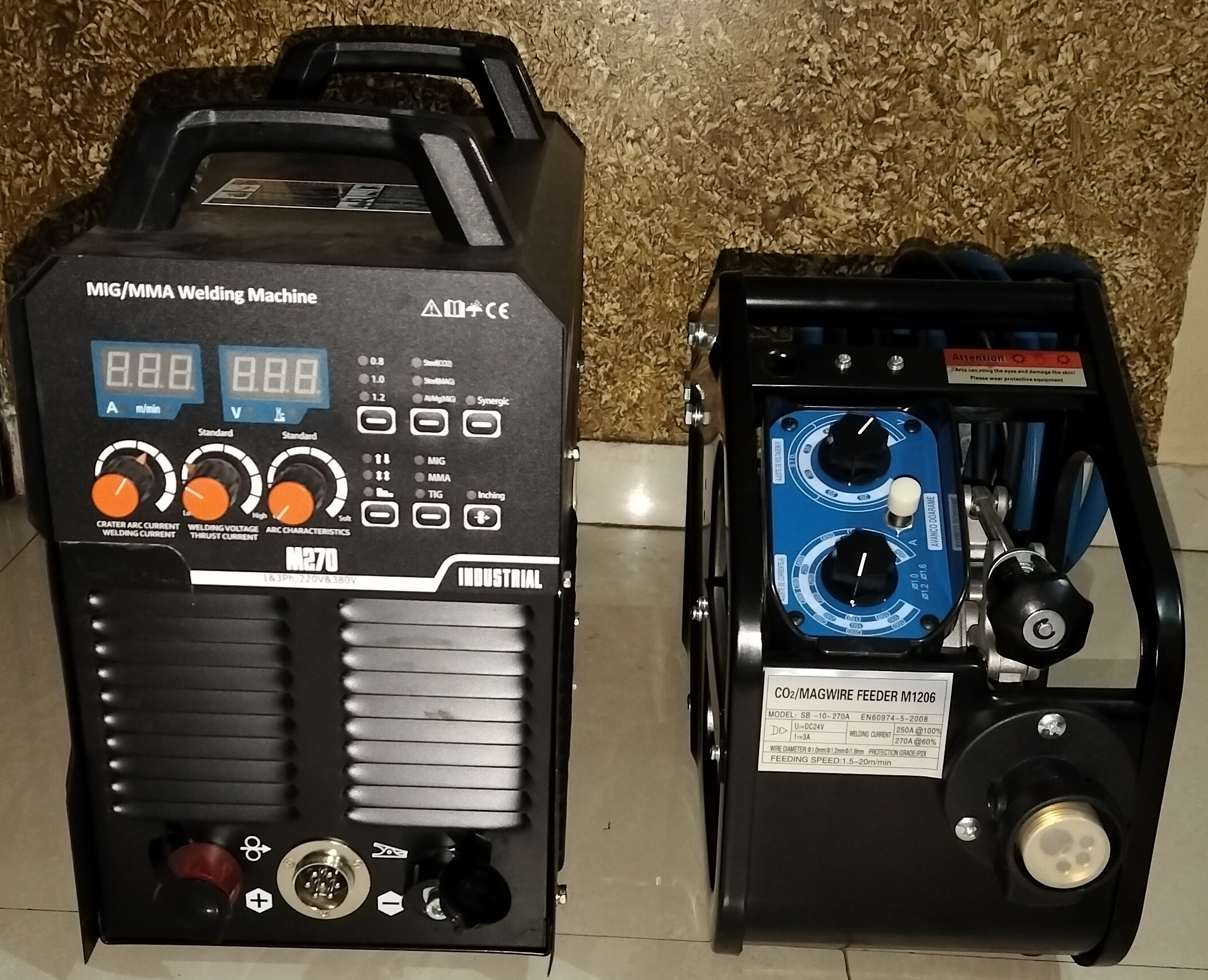

| MODEL NAME | MIG M270 |
| INPUT VOLTAGE | 1P220V&3P415V±15% |
| FREQUENCY | 50/60Hz |
| RATED INPUT CURRENT | |
| OUTPUT CURRENT | 30-335A |
| WIRE FEEDING SPEED (m/min) | 3-18 |
| FEEDING WIRE SIZE | 0.8,1.0,1.2mm |
| DUTY CYCLE | 60% |
| EFFICIENCY | ≥85% |
| RECOMMENDED WORKPIECE THICKNESS | ≥0.8mm |
| HOUSING PROTECTION GRADE | IP21 |
| DIMENSION L x W x H | 546*234*417mm |
| WEIGHT APPROX. | 11kg |
